Objects under construction

Warehouse of furniture work pieces in the city of Volgodonsk, Rostov region, total area 1700 м2
Design – LMK “Ruzhena”, installation - Company "Yugpromsrvice ".

Real estate agency "Vatican" erects an administrative-industrial complex on their own territory in Mytishchi, Ugolnaya street, building №6.
According to the contract of company “Ruzhena” has made the design, produced and delivered steel constructions for this administrative-industrial complex in a Mytishchi. The complete set of steel constructions of the administrative-industrial complex (according to drawings) includes: a warehouse, loading platforms, administrative building.

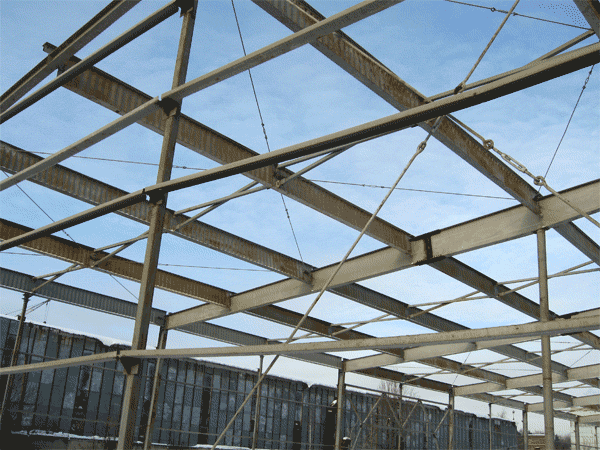

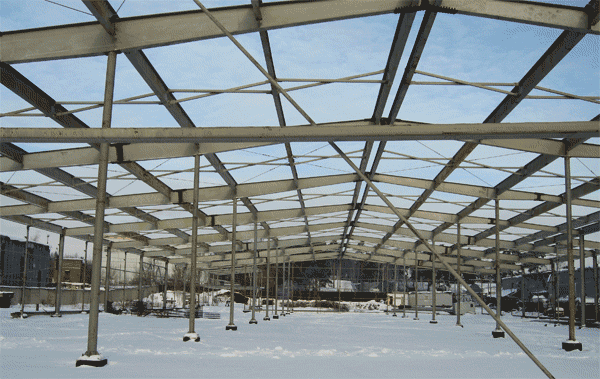

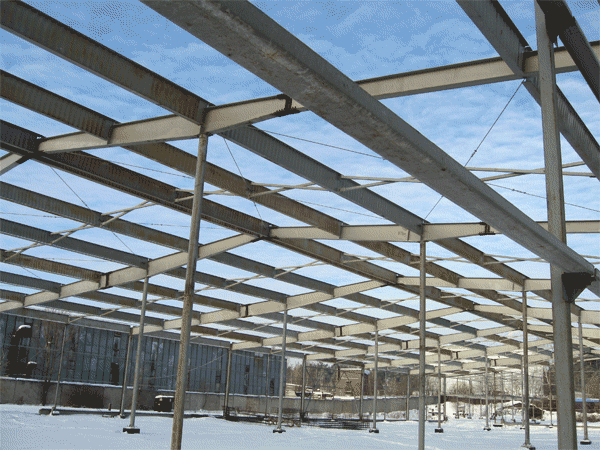

The steel constructions are made of rolled shapes and welded H-beams. The basic columns and beam heads are of welded H-beams and welded tubes. Columns of the frames and intermediate columns are made of square sectional view steel tubes. Vertical and horizontal braces on the coating are of round bar steel (diameter 18 mm) with a preliminary tension of 3 tons. Division bars and braces on the columns are of round bar steel with diameter of 25 mm and square sectional view steel pipes. Wall plates are made of cold-bent C-shape sections. Roof purlins are of welded girders with the goffered wall. The rigidness of the building is transversely provided with the frames consisting of columns and beam heads, connected rigidly and on hinges. The columns are built into foundation. Spatial rigidness of the framing is provided with system of horizontal cross-ties and trusses. Gross area of the structure is 6044 square metres. The construction and installation are under designer’s supervision of "Ruzhena" company.
